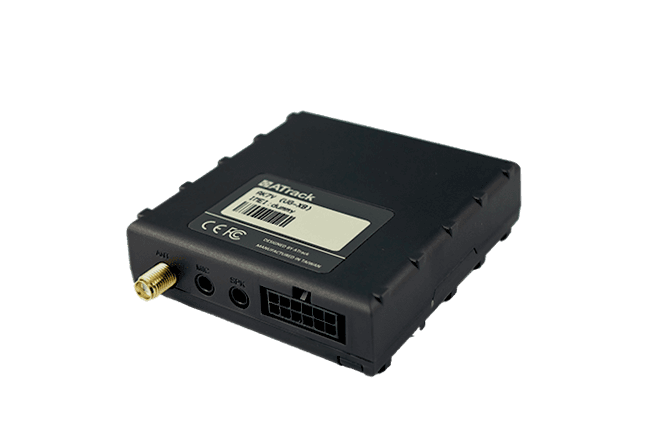

ATrack AK7V device image GpsGate
Setup Tutorial
Plugin Name
Device Information

ATrack AK7V is able to monitor vehicle location and remotely control its I/O port to deliver accurate data, including vehicle location and status. Featuring a two-way voice function, AK7V makes communication for the drivers much more efficient and convenient. Through additional accessory – ATrack AC3R, AK7V is compatible with OBDII, J1939, J1708 protocols which allows AK7V to be suitable for all types vehicle.


ATrack (TPEX: 6465) specializes in telematics hardware designing and manufacturing. Our core R&D team has over 20 years of industry experience, and our products have been deployed in various operating environments worldwide. ATrack has also been particularly successful at performing user-specific firmware and hardware customizations to help our clients win projects in this dynamic market. Through our continuous commitment to the industry and providing an unmatched level of responsiveness, we have been recognized as one of the most reliable hardware partners.

Device Plugin Change Log

ATrack build 8451 (2024-03-18)

  • Change input type J1708_VIN from double to string in AK11 and AU7 devices

ATrack build 8342 (2024-02-20)

  • Fix for mismatched message fields type/unit/description

ATrack build 8287 (2024-01-31)

  • Add new "EV_BatteryCapacity_AH", "EV_BatteryCapacity_KWH", "EV_Charging", "EV_StateOfCharge", "EV_IgnitionStatus", and "Ignition" inputs to AX9 device

ATrack build 8198 (2024-01-08)

  • Fix Odometer_EO calculation mixup of kilometers and meters

ATrack build 8044 (2023-11-15)

  • Add Odometer_EO for AX11 device

ATrack build 7595 (2023-06-19)

  • Atrack AX9 add new inputs Report106 to Report120

ATrack build 7101 (2022-12-28)

  • Fix for FMS_VehicleDistance variable when selectable as odometer field for AK11 device

ATrack build 7066 (2022-12-05)

  • Add support for J1939 DM1 (DTC) values for AK11: J1939_MalfunctionIndicatorLampStatus, J1939_RedStopLampStatus, J1939_AmberWarningLampStatus, J1939_ProtectLampStatus, and J1939_DTCs

ATrack build 6920 (2022-10-10)

  • Fix adding AK300, AL300, AP3, AS11, AX300, NT3 devices

ATrack build 6863 (2022-09-23)

  • Add Beacon{1..5}_MAC, Beacon{1..5}_Humidity, Beacon{1..5}_Temperature for AK11, AK300, AL300, AS11, and AX11 devices

ATrack build 6681 (2022-06-22)

  • Add TextMessage, TextMessage2, DTC_Codes for all ATrack devices

ATrack build 6505 (2022-05-02)

  • Add AK300, AL300, AP3, AS11, AX300, NT3 devices

ATrack build 6452 (2022-04-04)

  • Add TPMS_{1..5}_SensorID, TPMS_{1..5}_TireTemperature, TPMS_{1..5}_TirePressure for AK7V device

ATrack build 5780 (2021-07-02)

  • Extend AX7 device functionality

ATrack build 5768 (2021-07-01)

  • Filter out devices that are not from the ATrack family

ATrack build 5750 (2021-06-24)

  • Add GPSStatus, IntakeAirTemperature, MassAirFlowRate, GForceData, Xforce, Yforce, Zforce for AK11 device

ATrack build 5617 (2021-05-19)

  • Add support for AX11 device

ATrack build 5535 (2021-04-22)

  • Add GPSStatus for AU7 device
  • Add FMS_VehicleDistance1 for AK11 device

ATrack build 5366 (2021-03-11)

  • Fixed type mismatch error

ATrack build 5346 (2021-03-09)

  • Fixed beacon parsing data

ATrack build 5285 (2021-02-24)

  • Added OdometerAcc for AK7V device

ATrack build 5169 (2021-02-11)

ATrack build 5160 (2021-01-25)

  • Added Beacon{1..5}_MAC, Beacon{1..5}_Humidity, Beacon{1..5}_Temperature for AK7V device

ATrack build 5007 (2020-12-08)

  • Fixed 'GForceData' value
  • Added 'GForceData', 'Xforce', 'Yforce', 'Zforce', 'Report101..164'

ATrack v5.0.0.4754 (2020-10-02)

  • Fixed parsing reports which contained extra fields
southView complete changelog
