Meitrack
MD533S

Meitrack MD533S on GpsGate
Setup Tutorial
Plugin Name
Meitrack
Device Information

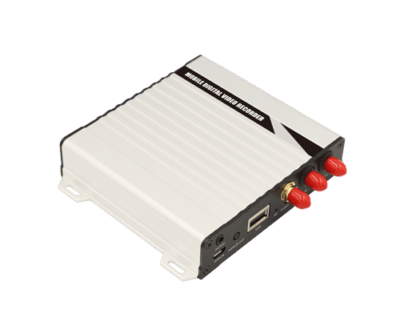

Meitrack's MD5533S is one of the smallest yet powerful DVR in the market. This system measures only 115mm x 120mm x 25mm which makes it ideal for installation without taking much room. This dual system MDVR and trackers functions to meet the demands of multiple applications. One of the advantages is the independent 4G communication, which the tracking peripherals can work with the ACC is on or off.

This Meitrack device is great for video recording via the 2 channel 1080p and supports OSD overlay for video recording. The MD553S has one of the most sophisticated video management systems via WiFi and is supported by GpsGate's fleet tracking platform.

Manufacturer
Country
China

Meitrack is a group of companies that have businesses covering GPS-tracking systems and equipment supplying. The company was founded in 2002 in China. With around 20 years' development, the group has established representative offices in California, Tokyo, Taiwan and Hongkong with expanded distribution network operating more than 170 countries.

Device Plugin Change Log

Meitrack build 7032 (2022-11-22)

  • Meitrack enabled _UpgradeMeitrackFirmware command for T366L and T399L devices

Meitrack build 6984 (2022-11-02)

  • Always send ACK for CFF messages

Meitrack build 6977 (2022-10-27)

  • Fix Meitrack T633L Fuel level mapping

Meitrack build 6952 (2022-10-19)

  • Meitrack added support for CFF message format

Meitrack build 6936 (2022-09-23)

  • Add signal support for T633L device: FuelLevel, EventCode, AcceleratorPedalPosition, CAN_FuelLevel, ActualEngineTorque, EngineRPM, EngineCoolantTemperature, Mileage, RFID, TotalFuelConsumption, TotalEngineRunTime, HighResolutionVehicleDistance, High resolution total fuel consumption, FuelConsumptionRate, TemperatureSensor(1 - 8)

Meitrack build 6935 (2022-10-14)

  • Add signal support for Meitrack MD533S: "​SatelliteCount​", "​GsmSignal​", "​BatteryVoltage​", "​ExternalVoltage​", "​TotalEngineRunTime​" as well as ​​Input1-5​​ and ​​Out1-5

Meitrack build 6864 (2022-09-23)

  • Add support for T399L device

Meitrack build 6863 (2022-09-23)

  • Add fuel level status and total fuel used for Meitrack MD811H device

Meitrack build 6830 (2022-09-14)

  • ACK will not be sent for "OK" messages

Meitrack build 6787 (2022-09-02)

  • Don't send ACK on CCE messages for MD devices

Meitrack build 6784 (2022-09-01)

  • Fixes for Meitrack MD500S device

Meitrack build 6782 (2022-08-31)

  • Add reply for AAC for MD500S device

Meitrack build 6769 (2022-08-26)

  • Add support new variables for Meitrack MD500S

Meitrack build 6729 (2022-08-02)

  • Update to use 'data length' instead of 'end pattern' to find entire message for binary reports

Meitrack build 6479 (2022-06-16)

  • Add TS299L device
  • Rewrite binary parser
  • Add MD500S, MD511H, MD522S, MD533S, MD811H, MD822S devices

Meitrack build 6479 (2022-04-20)

  • Add EventCode, MCC, MNC, LAC, CellID, Mileage for T711L device

Meitrack build 6459 (2022-04-06)

  • Add support for all EventCodes for P88L device

Meitrack build 6355 (2022-02-22)

  • Fix parsing parameters with extended ID and extended length

Meitrack build 6161 (2021-12-15)

  • Add T711L device

Meitrack build 6008 (2021-10-18)

  • Fix "Input1..5" values for T399G device

Meitrack build 5997 (2021-10-13)

  • Add "BatteryVoltage," "ExternalVoltage," and "Input1..5" for T399G device
  • Fix IMEI value for binary reports

Meitrack build 5544 (2021-04-23)

  • Add _UpgradeMeitrackFirmware command to TC68L
  • Add T366L device

Meitrack build 5394 (2021-03-18)

  • Add support for CPC 0XFE79, 0XFE7A, 0XFE7B, and 0XFE7C for the T633L device parsing and uploading CAN data

Meitrack build 5356 (2021-03-10)

  • Fix parsing CAN data

Meitrack build 5169 (2021-02-11)

Meitrack build 5022 (2020-12-10)

  • Extend P88L device functionality

Meitrack build 4977 (2020-11-24)

  • Fix parsing of binary reports when a device sends a command response
  • Add LockState for 'K211G' device

Meitrack build 4955 (2020-11-18)

  • Add 'CPC_{1..6}_PGN', 'CPC_{1..6}_Data' for T633L device

Meitrack build 4902 (2020-10-30)

  • Add support for T399G device
