Queclink GB130MG on GpsGate
Setup Tutorial
Plugin Name
Queclink
Device Information

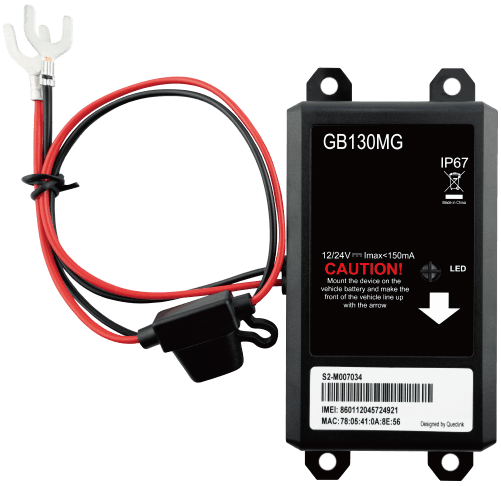

Queclink's GB130MG is the LTE version of the usage-based insurance telematics product GB100P. Its built-in 6-axis accelerometer allows accurate accident data sampled at up to 1600 times per second. With built-in BLE it supports wireless accessories; thus allowing the product to be flexible and suitable for applications beyond insurance data acquisition.


The GB130MG is a vehicle battery-mounted product specifically designed to lower the installation costs of telematics products in the usage-based insurance market. Its internal battery and waterproof enclosure maintain stable and reliable performance when installed in the engine compartment of vehicles. The Queclink's GB100 series is proven to provide accurate and reliable data under the metal hood of a vehicle engine and has been used successfully in the delivery of several large UBI projects for insurers and service providers alike. Queclink's GB130MG is supported by GpsGate.

Manufacturer
Country
China

Since 2009 Queclink Wireless Solutions has been “Driving Smarter IoT”. Queclink is a pure-play IoT hardware designer and manufacturer working with many well-known industrial and consumer companies to bring innovative IoT solutions to the market. Its business units span transportation, asset and mobility, networks, and agriculture. With 42 million IoT products delivered to over 140 countries, Queclink inspires data-driven solutions for its worldwide customers.

GpsGate supports Queclink's full product range, including: CK300, CV200, GB100, GB100MG, GL100, GL200, GL300, GL3000W, GL300A, GL300CAN, GL300M, GL300VC, GL300W, GL310MG, GL320MG, GL500, GL500MA, GL501MG, GL502MG, GL505, GL50B, GL50B Lite, GL520, GL530, GL520MG, GL521MG, GL53MG, GL530MG Plus, GMT100, GMT200, GMT200N, GS100, GT200, GT300, GT301, GT500, GV200, GV300, GV300CEU, GV300CAN, GV300N, GV300W, GV310LAU, GV320, GV350MA, GV50, GV51MG, GV57MG Plus, GV500, GV500MAP, GV500W, GV501LG, GV53MG, GV55, GV55W, GV55LITE, GV56, GV57, GV57CEU, GV57MG, GV350MG, GV600M, GV600MG, GV600W, GV600WG, GV608, GV628W, GV65, GV65Lite, GV65Plus, GV75, GV75MG, GV75W, GV800, and SC350MG. Don't see your device? Contact us!

Device Plugin Change Log

Queclink build 8487 (2024-03-26)

  • Add support for new signals for GV305CEU device

Queclink build 8416 (2024-03-06)

  • Add GB100CG and GL33CG devices
  • Fix position parsing bug in GTCAN messages

Queclink build 8342 (2024-02-20)

  • Fix for mismatched message fields type/unit/description

Queclink build 8303 (2024-02-05)

  • Add support for new GL50B Lite, GL521MG, GL530MG Plus, GL530, GV51MG and GV57MG Plus devices

Queclink build 8267 (2024-01-25)

  • Add GV57CEU device

Queclink build 8204 (2024-01-09)

  • Add support for HTDZ Sensors (Sensor ID, Humidity, Temperature) for GV58CEU device

Queclink build 8196 (2024-01-05)

  • Add GL500MG device
  • Add support for GL500MG device

Queclink build 8190 (2024-01-04)

  • Fix SaveChangesOnly values for multiple inputs + cleanup commands

Queclink build 8170 (2023-12-21)

  • Add support for ignition for GV310LAU device

Queclink build 8168 (2023-12-20)

  • Add new GL530MG device

Queclink build 7833 (2023-10-10)

  • Add GV310LAU device
  • Add new inputs for GV310LAU device: DigitalInput9, DigitalInputA, DigitalInputB, DigitalInputC, DigitalOutput9, DigitalOutputA, DigitalOutputB, DigitalOutputC

Queclink build 7832 (2023-10-09)

  • Add new inputs for CV200 device: Ignition, Motion, BatteryPercent, ExternalPowerVoltage, GpsAccuracy

Queclink build 7831 (2023-10-09)

  • Add GL502MG device

Queclink build 7762 (2023-09-14)

  • Improve parsing data

Queclink build 7730 (2023-09-01)

  • Add accessories for GL520MG device

Queclink build 7726 (2023-08-31)

  • Add Queclink SC350MG, CV200, and GV350MG devices

Queclink build 7610 (2023-06-27)

  • Add new inputs for Queclink GB130MG device to measure tire pressure including Bluetooth[1-10]_AccessoryName, Bluetooth[1-10]_AccessoryMAC, and Bluetooth[1-10]_TirePressure

Queclink build 7573 (2023-06-02)

  • Add Accessories{0..9} for GV355CEU device
  • Fix to SerialNumber

Queclink build 7569 (2023-05-31)

  • Fix AccessoryType value and mark GTBAS messages valid when possible

Queclink build 7561 (2023-05-29)

  • Add support for GTBAS/GTBAA messages for Queclink GV355CEU device

Queclink build 7544 (2023-05-23)

  • Fix parsing data from devices with extended protocol version (10 characters)

Queclink build 7541 (2023-05-22)

  • Fix parsing GTRTL messages for GV355CEU device

Queclink build 7474 (2023-04-24)

  • Add support for UDF for Queclink's GV300, GV300W and GL300 devices

Queclink build 7366 (2023-03-14)

  • Fix for parsing issues in GTCAN report for Queclink GV300CAN device

Queclink build 7361 (2023-03-14)

  • Fix for DigitalInput1 for GTDIS report data

Queclink build 7357 (2023-03-13)

  • Fix for inputs with the GL320MG device: Charing, RSSI, and Motion

Queclink build 7332 (2023-03-06)

  • Add new inputs for GL320MG device: PowerOn, PowerDisconnected, BatteryVoltage, Charging, MCC, MNC, LAC, CellID, HDOP, RSSI, DigitalInput1, Motion, Band, RadioAccessTechnology, and OdometerAcc

Queclink build 7318 (2023-03-02)

  • Add ICCID input to GV350 and GV200 devices

Queclink build 7307 (2023-02-28)

  • Queclink GV53MG ignition detection improvements. New status input for ExternalPowerVoltage

Queclink build 7268 (2023-02-14)

  • Add new inputs for Queclink GV53MG device: Ignition, and BatteryVoltage

Queclink build 7115 (2023-01-11)

  • Add new inputs for GL320M device: Low Battery, BatteryPercent, ExternalBatteryPercent, Motion, LedOn, Ignition, and PowerOff

Queclink build 7090 (2022-12-19)

  • Add support for Bluetooth and One Wire in GTERI messaging for the GV305CEU device

Queclink build 4057 (2022-11-29)

  • Fix missing mapping for the GV305CEU device: AnalogInput1 to 3, Ignition, DigitalInput1 to 4 and DigitalOutput1 to 6

Queclink build 6954 (2022-10-19)

  • Add support for Temperature for GL501MG.

Queclink build 6913 (2022-10-07)

  • Add support for SOS and Temperature for GL320MG device.

Queclink build 6897 (2022-10-04)

  • Fix temperature and humidity readings for GV300W device

Queclink build 6747 (2022-09-23)

  • Add GB130MG, GV305CEU, GV355CEU, and GV58CEU devices

Queclink build 6747 (2022-08-18)

  • Add support for BatteryPercent and BatteryVoltage for Queclink GL320MG

Queclink build 6683 (2022-06-22)

  • Add support of BatteryPercent for GTPNL Queclink

Queclink build (2022-06-17)

  • Fix parsing OneWire for GV350MA device

Queclink build 6623 (2022-06-07)

  • Add Bluetooth Accessories for GV350MA device

Queclink build 6618 (2022-06-02)

  • Fix parsing Bluetooth Accessory data

Queclink build 6587 (2022-05-25)

  • Add GV55W device

Queclink build 6490 (2022-04-25)

  • Add GV600MG, GV600WG devices

Queclink build 6460 (2022-04-07)

  • Add support for GV75W, GB100MG, GL310MG, GL320MG, GV57, GV57MG, GV53MG, GV75MG, GL501MG, GL520MG, GL53MG devices

Queclink build 6441 (2022-03-28)

  • Fix parsing GV300CEU messages based on real terminal data

Queclink build 6431 (2022-03-22)

  • Add GV300CEU device
  • Fix parsing GTFRI message for GV600M device

Queclink build 6316 (2022-02-10)

  • Fix parsing 1Wire data for GV350MA device

Queclink build 6281 (2022-02-02)

  • Add 1Wire and Bluetooth variables for GV600M device
  • Add Ignition and ExternalBatteryPercent for GL310M device

Queclink build 6218 (2022-01-19)

  • Add support for new communication protocol with GV501LG device
  • Parse Ignition value from GTERI and add OdometerAcc for GV350MA device

Queclink build 6194 (2022-01-12)

  • Fix DigitalFuelSensor value for GV350MA device

Queclink build 6188 (2022-01-10)

  • Add DigitalFuelSensor for GV350MA device

Queclink build 6174 (2021-12-22)

  • Add Kimax variables for GV350MA device

Queclink build 6142 (2021-12-09)

  • Fix parsing of GTDTT and GTERI messages for GV350M device

Queclink build 6134 (2021-12-03)

  • Add RFID, AnalogInput1/2, DataToTheBackendServer/ASCII for GV350MA device

Queclink build 6032 (2021-10-25)

  • Add BatteryPercent, BatteryVoltage, ExternalPower, LedOn, Low Battery, Motion for GL310M device

Queclink build 5914 (2021-09-09)

  • Add Gl310M device
  • Add RF433_{1..3}_SerialNumber, RF433_{1..3}_Type, RF433_{1..3}_Temperature, and RF433_{1..3}_Humidity for GV350M device
  • Add BatteryPercent, ExternalPowerVoltage, AnalogInput1 for GV56 device
  • Fix parsing incoming data from GL50B Lite device

Queclink build 5822 (2021-08-10)

  • Fix parsing of BatteryPercent from GTFRI/GTNMR messages for GL500M device

Queclink build 5812 (2021-07-22)

  • Add motion and movement status to GL520
  • Fix voltage for GTBAT version 2F

Queclink build 5798 (2021-07-09)

  • Fix External Power Voltage on GV55

Queclink build 5789 (2021-07-05)

  • GTNMR Fix Motion value

Queclink build 5760 (2021-06-29)

  • Add BeforeCrash, AfterCrash, AccelerationX/Y/Z for the GV55 device
  • Add CAN_TotalDistance1 for GV800 device mapper and CAN_TotalDistance for GV800 Odometer Acc

Queclink build 5675 (2021-06-08)

  • Fix TakePicture command

Queclink build 5576 (2021-05-05)

  • Add GV56 device
  • Add CAN_TotalDistance1 for the GV200 device

Queclink build 5544 (2021-04-23)

  • Add GL505 device

Queclink build 5442 (2021-04-01)

  • Added HarshAcceleration, HarshBraking, HarshTurning, HarshSpeedLevel, ExternalPowerVoltage0, and RFID for GV800 device
  • Added HourMeter for GV500 device
  • Fixed parsing of GTFRI reports for GV608 device

Queclink build 5169 (2021-02-11)

Queclink build 5160 (2021-01-25)

  • Fixed 1Wire and Ignition parsing

Queclink build 5158 (2021-01-23)

  • Fixed parsing of RF Accessories, and added RF{1..16}_Temperature and RF{1..16}_Humidity for GV800 device

Queclink build 5142 (2021-01-20)

  • Added support for GTIOS message type for GV300W device

Queclink build 5133 (2021-01-19)

  • Renamed '1WireDeviceID' to '1WireDeviceID_1'

Queclink build 5107 (2021-01-13)

  • Fixed OneWire data parsing

Queclink build 5041 (2020-12-17)

  • Fixed 'Ignition' value for GV300W device

Queclink build 5002 (2020-12-04)

  • Added 'BatteryPercent' for GV600M device
  • Added 'IButton' for GV350MA

Queclink build 5000 (2020-12-03)

  • Fixed parsing CAN_TotalDistance, CAN_TotalFuelUsed values
  • Added 'MCC', 'MNC', 'LAC', 'CellID', 'RxLevel', 'SatelliteCount' for GV350MA device
  • Fixed parsing 'BatteryPercent' value of GTERI (ED version)

Queclink build 4991 (2020-12-01)

  • Extended GL300W functionality
southView complete changelog
